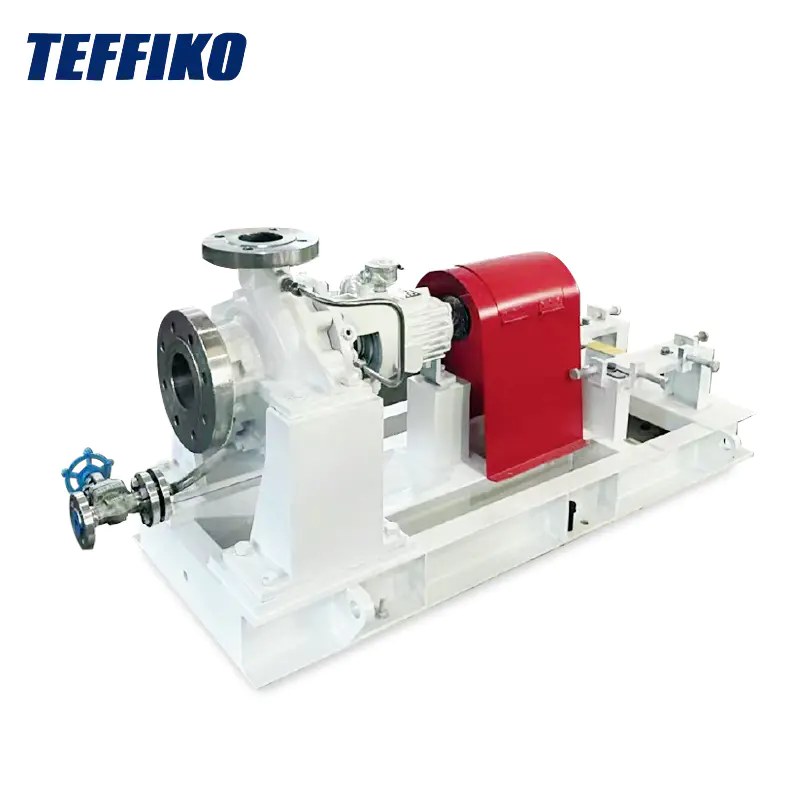

Pump Overhung Tipe Centrifugal Horisontal

Model:T2EP

Minangka pimpinan global ing teknologi cairan industri, Teffiko nembe ngluncurake API Oh2 Overhung Overhung Centrifugal Series. Seri iki dadi pusat babagan netepi ketat karo standar internasional petroleum ing Amerika (API 610 oh oh 610). Dirancang khusus kanggo skenario ing industri petrokimia, ekstraksi energi, lan transportasi media media sing corrosive, menehi redepining pathokan industri kanggo linuwih lan efisiensi.

Kirim Pitakonan

Deskripsi Produk

Pompa centrifugal API Oh2 Overhung minangka seri produk anyar sing dirancang lan dikembangake Teffiko. Iki nampilake horisontal, tahap, tunggal - nyedhot, lan struktur volute sebagean radial. Bisa ngangkut macem-macem cairan kanthi suhu sing dhuwur utawa sithik, utawa asam sing ora netral, kayata asuransi kaya asam nitrat, asam sulfur, lan asam fosforat. Digunakake utamane ing industri nyaring, industri petrokimia, industri pangolahan batu, kertas lan industri pulp, industri gula, pemanasan lan sumber banyu, lsp.

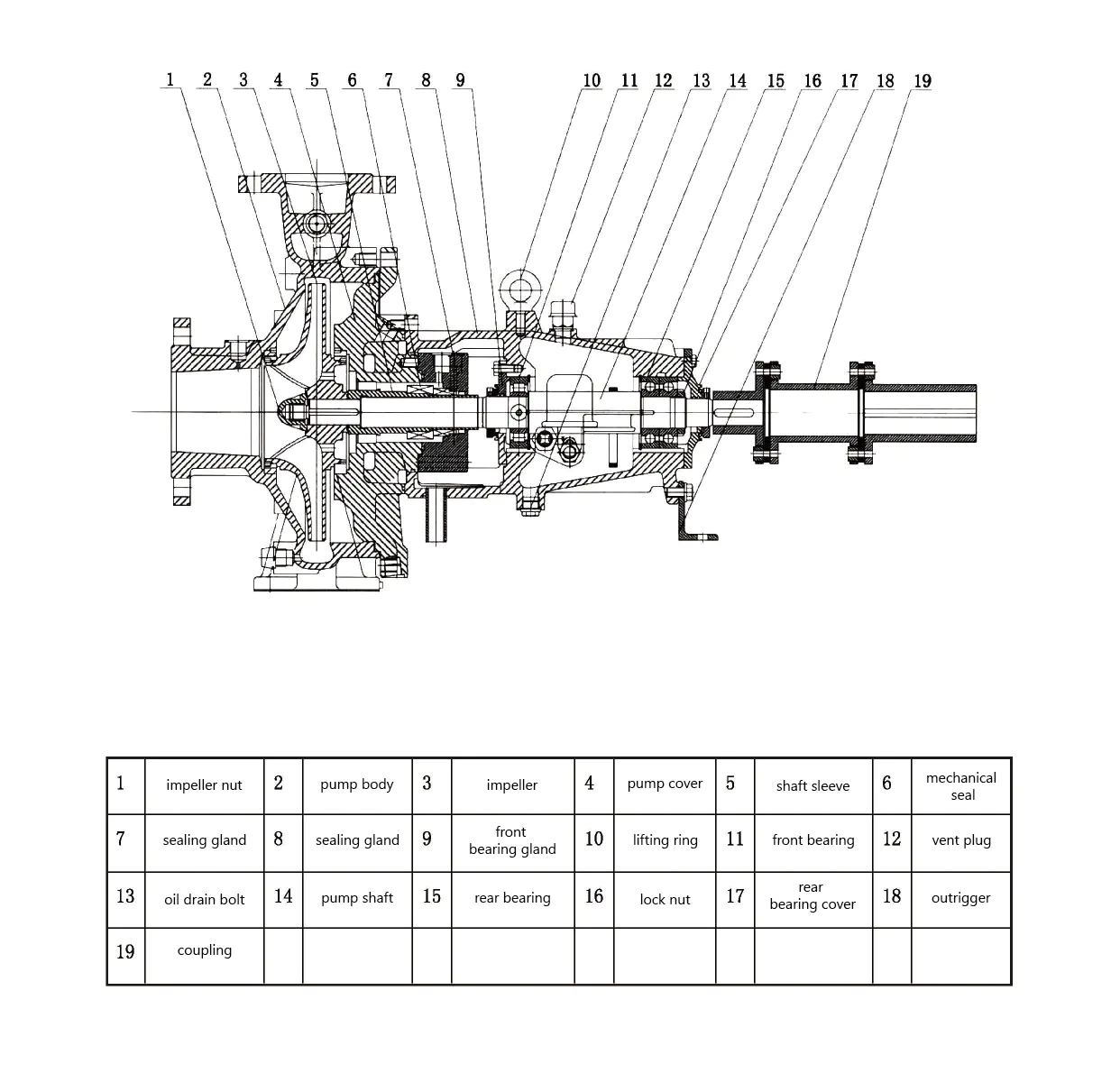

Pompa centrifugal t2ep diagram

Api Oh2 Overhung Type Horizontal Centrifugal Pumps

Lapangan Aplikasi

● Industri Petrokimia

● Ing proses: Ing proses kaya distilasi minyak mentah, retakan katalasiat, lan hidritik - pompa proses kimia, produk perayaan, minyak kimia, lan macem-macem agen kimia.

● Industri petrochemical: Sajrone produksi bahan-bahan mentah kimia kayata etilena lan propylene, uga pompa sing digunakake kanggo ngirim macem-macem bahan mentah, penengah, lan produk. Contone, dheweke ngeterake senyawa organik kaya Benzene, Toluene, lan Xlene.

● Industri pangolahan batu: ing proses kalebu batu bara - kanggo - Cairan, batu bara - kanggo - metanol, membur, lan batu bara, lan metanol.

● industri tenaga

● Peker daya: Proses pompa digunakake kanggo ngeterake dandang digawe - banyu, banyu kondensasi, lan sirkulasi banyu pendinginan. Dheweke uga bisa digunakake kanggo ngirimake asam - solusi dhasar lan slurries ing proses desulfurizer lan denitrasi.

● industri kertas lan pulp

● Conveyance bahan mentah: Pompa digunakake kanggo mindhah pulp, yaiku campuran bahan-bahan kayu kayata chip kayu, saka pekarangan banyu, saka pekarangan banyu, kanggo njamin pasokan bahan-bahan bengkel.

● Purp Conveyance: Pompa digunakake kanggo ngeterake pulp sing mumpuni, sing wis ngliwati proses pulp lan screening, saka tank pulp menyang headbox saka mesin kertas. Iki njamin pasokan pulp sing stabil sajrone pembentukan kertas lan jumlah pulp seragam lan ketebalan.

Kahanan operasi

● Tingkat aliran: 3 - 2600 m³ / h

● Kepala: 4 - 250 m

● meksa: nganti 5.0 mpa

● suhu: -20 ° C - 450 ° C

● Kacepetan rotasional: 2950 rpm / min, 1450 rpm / min

Diagram parameter kinerja

model	mpeller	Kacepetan Pump N = 2900R / Min						Kacepetan Pump N = 1450R / Min
		Qm³ / h	H (m)	n%	NPSHM	Y = 1.00		Qm³ / h	H (m)	n%	NPSHM	Y = 1.00
						Daya lan Model Motor KW						Daya lan mode motor
						Daya lan Model Motor KW						kw
25-200	A	11.5	49	42	1.5	5.5	Y132s1-2	5.8	12	36	0.6	1.1	Y9os-4
	B	10.5	42			4	Y112m-2	5.4	11
	C	9	36			3	Y100L-2	4.6	8.5
	D	7.5	28			2.2	Y90l-12	4	6.5
	E	5.5	16			1.5	Y90s-2	3	4
25-250	A	10.5	80	28	1.2	11	Y160m1-2	7.5	18	23	1	2.2	Y100L1-4
	B	9.7	68			7.5	Y132s2-2	7	16			2.2	Y100L1-4
	C	9	50			5.5	Y132s1-2	6.5	11.5			2.2	Y100L1-4
	D	8.5	30			4	Y112m-2	6	6.5			1.1	Y90s-4
	E					4	Y112m-2
25-315	A	18.5	130	28	1.2	30	Y200l1-2	9.5	32	25	0.7	5.5	Y132s-4
	B	17.5	115			30	Y200l1-2	8.7	29			4.0	Y112m-4
	C	16	100			22	Y180m-2	7.5	25			3.0	Y100L2-4
	D	14	90			18.5	Y160L1-2	7	22			3.0	Y100L2-4
	E	13	80			18.5	T160L1-2	6.8	20			3.0	Y100L2-4
	F	11.5	67			15	Y160m2-2	6	16			2.2	Y100L1-4
40-160	A	2b	33	62	3	5.5	Y132s1-2	14	8	59	0.8	1.1	Y90s-4
	B	25.6	29			4	Y112m-2	13	7
	C	22	22			2.2	Y90l-2	11	5.5
	D	20	16			2.2	Y90l-2	9.5	4.5
40-200	A	29	53	58	2.2	11	Y160m1-2	14.5	13	55	0.8	1.5	Y90l-2
	B	26	47			7.5	Y132922	13	11.5			1.1	Y90s-4
	C	22	39			5.5	Y132s1-2	11.5	9			1.1	Y90s-4
	D	18	20			4	Y112H-2	9.5	7			1.1	Y90s-4
40-250	A	32	78	53	2.5	18.5	Y160L-2	16	19.5	49.5	0.8	3	Y100L24
	B	30	72			15	Y160m2-2	15	18			2.2	Y100L1-4
	C	24	60			11	Y160m12	12.5	14			1.5	Y90l.4
	D	21	47			7.5	Y132s2-2	10.5	1			1.1	Y908-4
40-315	A	42	115	46	1.3	37	Y200L2-2	21	29	42	0.5	5.5	Y132S 4
	B	40	107			30	Y200l1-2	20	26.5			5.5	Y132S 4
	C	34	81			22	Y180m-2	17.5	20			4	Y112m-4
	D	25	61			15	Y160nm2-2	15	15			3	Y100L2-4
50-160	A	50	34	71	2.1	11	T160M1-2	25	8.4	69	0.b	1.5	Y90l-4
	B	45	29			7.5	Y132s2-2	22.5	7			1.5	Y90l-4
	C	38	22			5.5	Y132s1-2	19	5.5			1.1	Y90s-4
	D	31	17			3	Y100L-2	16.5	4			1.1	Y90s-4
50-200	A	62	52	68	2.6	18.5	Y160L-2	31	13	65.5	0.7	3	Y100L2-4
	B	56	46			15	Y160n2-2	28.5	11.5			2.2	Y100L1-4
	C	49	37			11	Y160n1-2	25				1.5	Y90l-4
	D	43	28			7.5	Y13292-2	22	7			1.1	Y903-4
50-250	A	70	82	65	2.4	30	Y200l1-2	35	20	62.5	0.7	4	Y112m-4
	B					30	Y200l1-2	33	18.5			4	Y112m-4
	C	60	60			22	T180m-2	30	15			3	Y100L2-4
	D	50	45			15	Y160m2-2	26	11			2.2	Y100L1-4
50-315	A	87	115	56	2.1	55	T250h-2	44	28	53	0.5	11	Y160m-4
	B	80	100			45	Y223m-2	40	24			7.5	Y132m-4
	C	70	78			30	Y2001.12	35	19			5.5	Y132S 4
	D	57	57			22	Y180h 2	30	14			3	Y100L24
50-400	A	82	194	48	2	110	7315-2	41	48	45	0.5	15	Y160L-4
	B	7b	175			90	T28OH 2	39	43			15	Y160L-4
	C	70	140			75	Y280s-2	35	34			11	Y160m-4
	D	60	102			45	Y223m-2	30	25			7.5	Y132m-4
