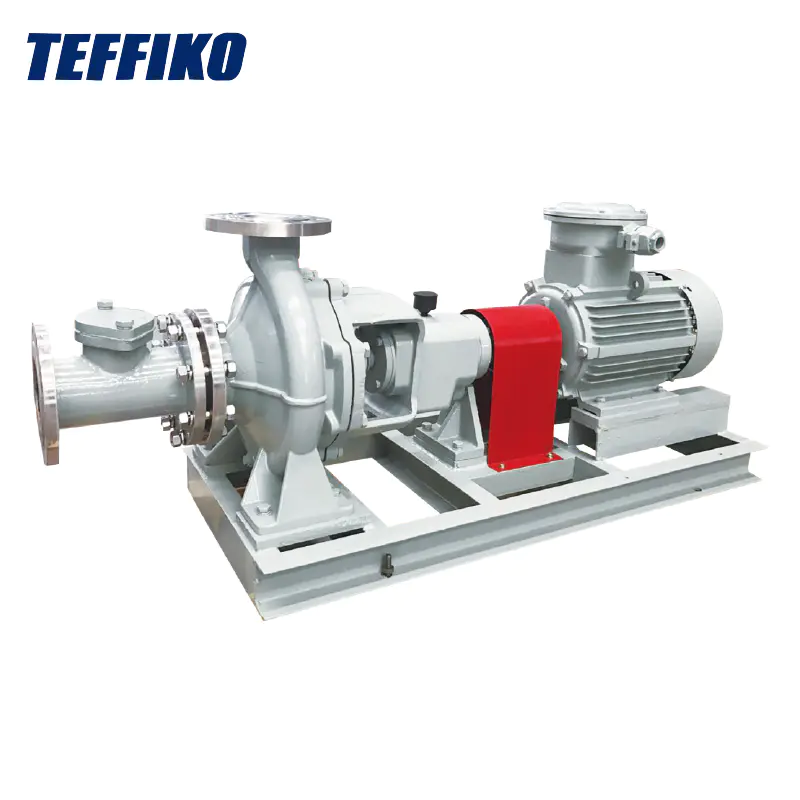

Minangka Pompa Api Oh1 Horisontal Centrifugal kanggo slurry clogging, nduweni desain unik ing komponen utama. Impeller ngetrapake struktur saluran gedhe, kanthi hawa aliran sing amba lan lancar lan agul-agul sing dioptimalake kanthi ati-ati, sing kanthi becik nyuda resiko clogging slurry lan ningkatake efisiensi konvejing. Awak pompa digawe saka bahan tahan tahan tahan lan tahan karat, kanthi interior kompak lan desain wacana aliran sing cukup kanggo njamin panganan lan mbuwang lancar. Segel gael kasedhiya ing rong bentuk: segel mekanik lan segel kemasan. Nduwe kinerja sing nyenengake lan efektif ngluwihi layanan peralatan kasebut.

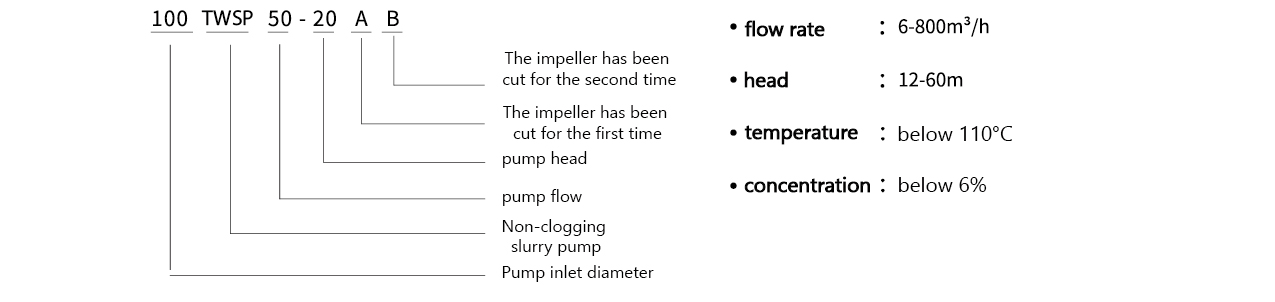

Modhél modhél & kahanan operasi
Lapangan Lapangan TwSP
1. Industri kimia: digunakake kanggo ngangkut macem-macem bahan kimia mentah lemari, bahan pembuangan saka ketet reaksi, lan slurus slurus ing perawatan limbah. Korosis - bahan tahan lan non-clogging kinerja custrifugal saka pompa non-centrifugal bisa njamin produksi sing lancar.
2 .. Industri Papermaking: biasane digunakake ing proses kayata transportasi pulp lan perawatan sampah sampah. Slurries ing proses kertas ngemot jumlah serat, sing bisa nyebabake ksok cloging kanthi gampang. Impeller saluran gedhe lan desain struktur khusus saka pompa slurry Kembung sing ora clogging nggawe pilihan sing cocog kanggo industri Papermaking.
3. Industri daya: ing sistem awu mbusak tanduran tenaga termal, digunakake kanggo ngangkut slurries abu sing mabur. Iki bisa njamin operasi stabil saka sistem aman awu sajrone proses generasi tenaga.

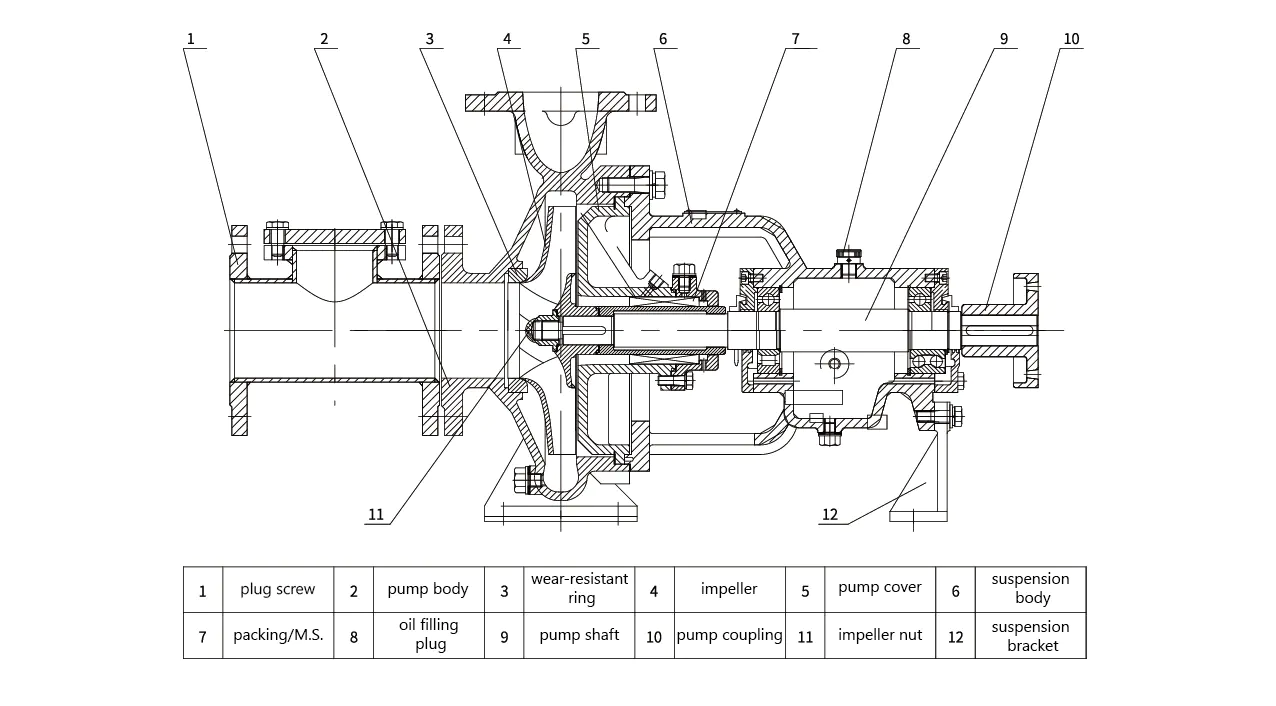

Pumpmp Centrifugal diagram diagram
Tabel Parameter Kinerja
| Model pompa | (r / min) | (Q) | (H) | Power kw | |||
| m³ / h | L / s | 1.0 | 1.35 | 1.85 | |||
| 50twsp6.3-12.5 | 1450 | 3.75 6.30 7,50 | 1.04 1.74 2.08 | 12,9 12.5 12.0 | 1.1 | 1.1 | 1.5 |
| 50twsp6.3-20 | 1450 | 3.75 6.30 7,50 | 1.04 1.74 2.08 | 20.5 20.0 19.6 | 2.2 | 2.2 | 3.0 |
| 50twsp6.3-20A | 1450 | 3.50 6.30 7.00 | 0.97 1.64 1.94 | 18.0 17.5 17.0 | 1.5 | 2.2 | 3.0 |
| 65twsp12-12.5 | 1450 | 7.50 12.5 15.0 | 2.08 3.47 4.17 | 13.3 12,5 11.9 | 1.5 | 2.2 | 2.2 |
| 65twsp12-12.5A | 1450 | 7.00 11.7 14.0 | 1.94 3.25 3.89 | 11.5 11.0 10.5 | 1.1 | 1.5 | 2.2 |
| 65twsp12-20 | 1450 | 7.50 12.5 15.0 | 2.08 3.47 4.17 | 20.3 20.0 19.6 | 2.2 | 3 | 4 |
| 65twsp12-20 | 1450 | 7.00 11.7 14.0 | 3.25 1.94 3.89 | 17.8 17.5 17.2 | 2.2 | 3 | 4 |
| 65twsp12-32 | 1450 | 7.50 12.5 15.0 | 2.08 3.47 4.17 | 32,4 32.0 31,7 | 5.5 | 5.5 | 7.5 |
| 65twsp12-33a | 1450 | 7.00 11.7 14.0 | 1.94 3.25 3.89 | 27.9 27.4 27.1 | 4 | 5.5 | 7.5 |
| 65twsp12-32b | 1450 | 6.60 11.0 13.2 | 1.83 3.06 3.67 | 24.5 24.1 24.0 | 3 | 4 | 5.5 |
| 80twsp25-12.5 | 1450 | 15.0 25,0 30.0 | 4.17 6.94 8.33 | 13,5 12,5 11.5 | 2.2 | 3 | 4 |
| 80twsp55-12.5A | 1450 | 13,6 22.7 27.2 | 3.78 6.31 7.56 | 11,1 10.3 950 | 1.5 | 2.2 | 3 |
| 80twsp25-20 | 1450 | 15.0 25,0 30.0 | 4.17 6.94 8.33 | 21.0 20.0 19.0 | 4 | 5.5 | 7.5 |
| 80twsp25-20A | 1450 | 14.1 23.5 28.1 | 3.91 6.51 7.82 | 18.4 17,6 16.9 | 3 | 4 | 5.5 |
| 80twsp25-20B | 1450 | 13,2 22.0 26.4 | 3.67 6.11 7.33 | 16.2 15.6 15.0 | 3 | 4 | 5.5 |
| 80twsp25-32 | 1450 | 15.0 25,0 30.0 | 4.17 6.94 8.33 | 32.5 32.0 31.5 | 7.5 | 7.5 | 11 |
| 80twsp25-33 | 1450 | 14.1 23.5 28.1 | 3.91 6.51 7.82 | 28.5 28.0 27.5 | 5.5 | 7.5 | 11 |
| 80twsp25-32 | 1450 | 13,2 22.0 26.4 | 3.67 6.11 7.33 | 25,0 24.5 24.0 | 4 | 5.5 | 7.5 |
| 80twsp25-32C | 1450 | 11.7 19.5 23.4 | 3.25 5.42 6,50 | 20.0 19.5 19.0 | 3 | 4 | 5.5 |
| 100twsp50-12.5 | 1450 | 30.0 50.0 60.0 | 8.33 13.9 16.7 | 14.0 12.5 11.0 | 3 | 4 | 5.5 |
| 100twsp50-12.5A | 1450 | 27.3 45.5 54.5 | 7.58 12.6 15.1 | 11.6 10.4 910 | 3 | 4 | 5.5 |
| 100twsp50-20 | 1450 | 30.0 50.0 60.0 | 8.33 13.9 16.7 | 22.0 20.0 18.5 | 5.5 | 7.5 | 11 |
| 100twsp50-20a | 1450 | 28.0 46.8 56.0 | 7.78 13.0 15.6 | 19.2 17.5 16.1 | 5.5 | 7.5 | 11 |
| 100twsp50-20B | 1450 | 26.4 43.9 52.7 | 7.32 12.2 14.6 | 17.0 15.4 14.3 | 4 | 5.5 | 7.5 |
