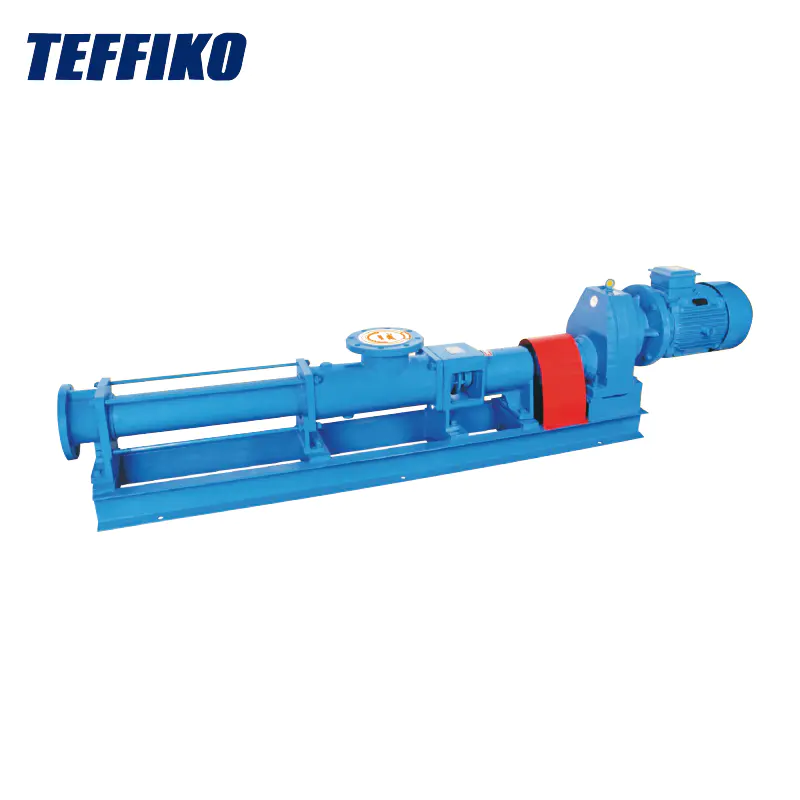

Pompa Umum Teffiko Tipe siji sing cocog kanggo kahanan kerja ing ngisor iki:
● Transportasi Media Viscosity High - viskositas media udakara 20.000 nganti 200.000 MPA · gumantung saka ukuran pompa.
● Pengangkutan media sing ngemot partikel utawa serat partikel maksimal yaiku 16 mm, dawane serat paling dawa yaiku 100 mm. Konten Fase umume 40%, lan nalika padhet ing media ana ing wangun bubuk, bisa nganti 60% utawa luwih dhuwur.
● Pengangkutan terus-terusan: Ora ana turunane tekanan piala kaya pompa timbal balik.
● Pengangkutan rendah: ora ngrusak struktur media sing ana ing media.
● Kepuasan sing apik - syarat swara.

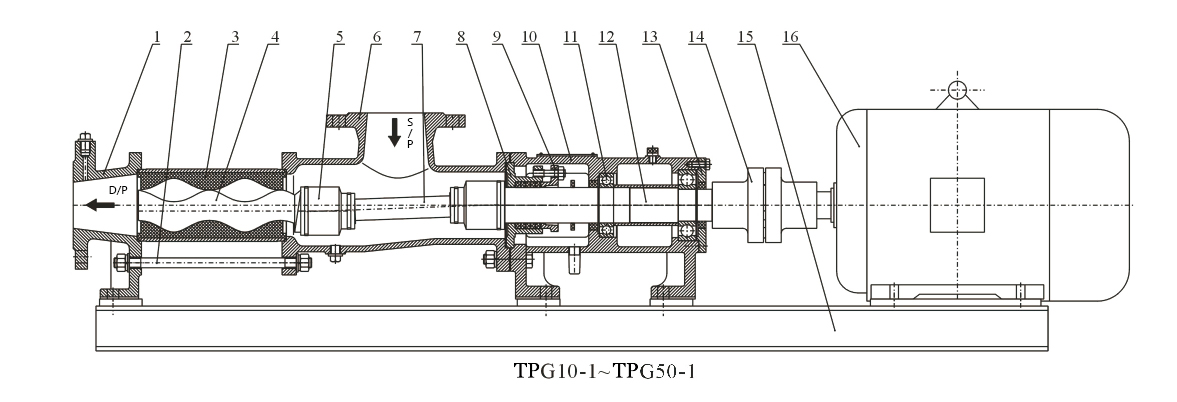

Diagram Strip Struktur Tunggal - Pompa Screw
1.Discharge Body 2.Stator Rod 3.Stator 4.Screw Shaft 5.feed Body 7.CAPHING SHAFT13.COUPLING 11.Base 16.mase 16.motor

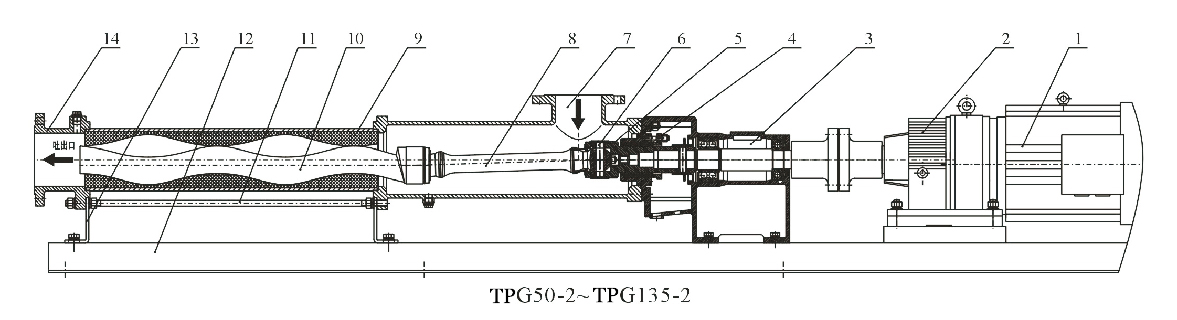

1.motor 2.Gearbox 3.Pilih komponen pigura 4.pilih komponen seal 5.Sampeyan 0Sampeyan 11.Base 11.Base 13.Support Kaki 14.Pasari

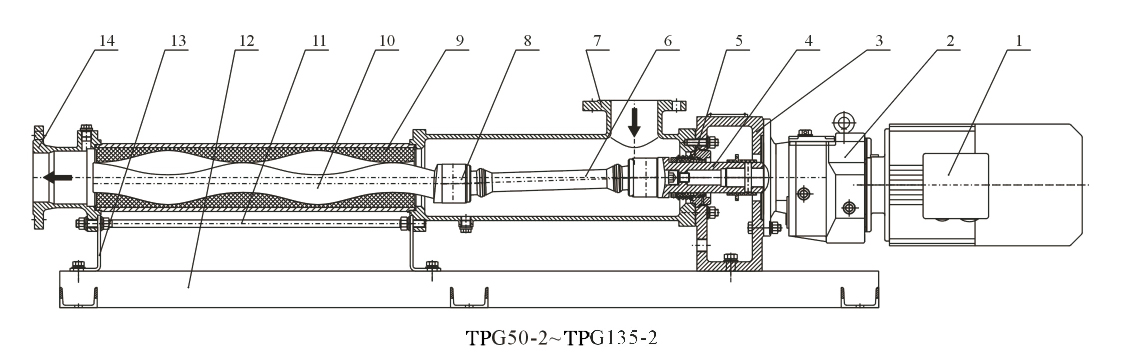

1.motor 2.dotbox-sambungan-sambungan 4.Direktif ndhukung shaft segel 5.Mekan 6Mekanal 6.Sampeyan 11.Base 11.Base 13.Base 13.Support Kaki 14.Masmarke Badan
Lapangan Aplikasi
● Lapangan perlindungan lingkungan: Cocog kanggo ngeterake limbah industri lan domestik, uga sludge - banyu turbid laden ngemot partikel sing cekak lan serat cendhak.
● Industri shipbuilding: digunakake kanggo ngresiki kapal ngisor lan ngeterake media kayata minyak - campuran banyu, sludge minyak, lan luh lenga, lan luh berminyak.
● Industri petroleum: Ngangkut minyak mentah, minyak - campuran banyu, lan methane batu batu bara - campuran banyu.
● industri kimia lan saben dina: bisa nyritakake macem-macem slurries viscous, emulsions, lan salep - jinis kosmetik.
● Industri canning panganan: bisa ngangkut lintang sing bisa diowahi, minyak minyak, sayang, senggol, lan krim.
● Industri Brewing: cocog kanggo ngangkut slurries viscous sing diangkat, pari-parian distiller kenthel, sisa produk panganan, lan cairan mucous kanthi macem-macem solid.
● Industri konstruksi: digunakake kanggo nyemprotake lan ngeterake bahan-bahan pas pasty kayadene mortir, lan lapisan.
● Industri pertambangan: nyelehake banyu lan slurry - limbah laden ngemot partikel padhet sing ngemot partikel padhet ing tambang ing lemah.
● Industri kimia: pompa helik helik ngangkut macem-macem penundaan, minyak, slurries kolam, lan adesif.
● Printing lan kertas - nggawe industri: bisa ngaturake dhuwur - inks viskosity lan pastes plastik pvc kanggo wallpaper.
● Dandang industri lan tanduran tenaga: pompa spirasi digunakake kanggo ngeterake batu bara - slurry banyu.
Meja Parameter Kinerja
| Ora | Model pompa | Aliran m³ / h | Tekanan MPA | Rpm kacepetan dirating | Kw motor kw | Diameteripun nlet mm | Outlet kaliber mm | Fungsi |
| 1 | TPG10-1-V | 0.1 | 0.6 | 960 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 2 | TPG13-1-V | 0.4 | 0.6 | 960 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 3 | TPG15-1-V | 0.6 | 0.6 | 960 | 0.75 | 25 | 25 | Pengangkutan Pam |
| 4 | TPG20-1-V | 0.8 | 0.6 | 960 | 0.75 | 25 | 25 | Pengangkutan Pam |
| 5 | Tpg25-1-v | 2 | 0.6 | 960 | 1.5 | 32 | 25 | Transportasi sludge |
| 6 | TPG30-1-V | 5 | 0.6 | 960 | 2.2 | 50 | 40 | Transportasi sludge |
| 7 | TPG35-1-V | 8 | 0.6 | 960 | 3 | 65 | 50 | Transportasi sludge |
| 8 | TPG40-1-V | 12 | 0.6 | 960 | 4 | 80 | 65 | Transportasi sludge |
| 9 | Tpg50-1-v | 20 | 0.6 | 960 | 5.5 | 100 | 80 | Transportasi sludge |
| 10 | TPG60-1-V | 30 | 0.6 | 960 | 11 | 125 | 100 | Transportasi sludge |
Pilihan Pump Type-TPG kanthi 8-Pole Motor (Low-Voltase Pump Inet -stage Brudge Pump)
| Ora | Model pompa | Aliran m³ / h | Tekanan MPA | Rpm kacepetan dirating | Kw motor kw | Diameter diameter mm | Outlet kaliber mm | Fungsi |
| 1 | TPG10-1-V | 0.08 | 0.6 | 720 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 2 | TPG13-1-V | 0.3 | 0.6 | 720 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 3 | TPG15-1-V | 0.45 | 0.6 | 720 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 4 | TPG20-1-V | 0.6 | 0.6 | 720 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 5 | Tpg25-1-v | 1.5 | 0.6 | 720 | 1.1 | 32 | 25 | Transportasi sludge |
| 6 | TPG30-1-V | 4 | 0.6 | 720 | 2.2 | 50 | 40 | Transportasi sludge |
| 7 | TPG35-1-V | 6 | 0.6 | 720 | 2.2 | 65 | 50 | Transportasi sludge |
| 8 | TPG40-1-V | 9 | 0.6 | 720 | 3 | 80 | 65 | Transportasi sludge |
| 9 | Tpg50-1-v | 15 | 0.6 | 720 | 4 | 100 | 80 | Transportasi sludge |
| 10 | TPG60-1-V | 25 | 0.6 | 720 | 7.5 | 125 | 100 | Transportasi sludge |
| 11 | TPG70-1-V | 40 | 0.6 | 720 | 11 | 150 | 125 | Transportasi sludge |
| 12 | TPG85-1-V | 50 | 0.6 | 720 | 15 | 150 | 150 | Transportasi sludge |
| Ora | Pompa Mode | Aliran m³ / h | Tekanan MPA | Rpm kacepetan dirating | Kw motor kw | Diameteripun nlet mm | Outlet kaliber mm | Fungsi |
| 1 | TPG10-2-V | 0.1 | 1.2 | 960 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 2 | Tpg13-2-v | 0.4 | 1.2 | 960 | 1.1 | 25 | 25 | Pengangkutan Pam |
| 3 | Tpg15-2-v | 0.6 | 1.2 | 960 | 1.1 | 25 | 25 | Pengangkutan Pam |
| 4 | TPG20-2-V | 0.8 | 1.2 | 960 | 1.5 | 25 | 25 | Pengangkutan Pam |
| 5 | Tpg25-2-v | 2 | 1.2 | 960 | 2.2 | 32 | 25 | Transportasi sludge |
| 6 | TPG30-2-V | 5 | 1.2 | 960 | 3 | 50 | 40 | Transportasi sludge |
| 7 | Tpg35-2-v | 8 | 1.2 | 960 | 4 | 65 | 50 | Transportasi sludge |
| 8 | Tpg40-2-v | 12 | 1.2 | 960 | 5.5 | 80 | 65 | Transportasi sludge |
| 9 | Tpg50-2-v | 20 | 1.2 | 960 | 7.5 | 100 | 80 | Transportasi sludge |
| 10 | TPG60-2-V | 30 | 1.2 | 960 | 15 | 125 | 100 | Transportasi sludge |
Pilihan Pump Type TPG kanthi 8-Pole Motor (Low-voltase Inet Inet Pump)
| Ora. | Model pompa | Aliran m³ / h | Tekanan MPA | Rpm kacepetan dirating | Kw motor kw | Diameter diameter mm | Outlet kaliber mm | Fungsi |
| 1 | TPG10-2-V | 0.08 | 1.2 | 720 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 2 | Tpg13-2-v | 0.3 | 1.2 | 720 | 0.75 | 25 | 25 | Pengangkutan Pam |
| 3 | Tpg15-2-v | 0.45 | 1.2 | 720 | 1.1 | 25 | 25 | Pengangkutan Pam |
| 4 | TPG20-2-V | 0.6 | 1.2 | 720 | 1.1 | 25 | 25 | Pengangkutan Pam |
| 5 | Tpg25-2-v | 1.5 | 1.2 | 720 | 1.5 | 32 | 25 | Transportasi sludge |
| 6 | TPG30-2-V | 4 | 1.2 | 720 | 2.2 | 50 | 40 | Transportasi sludge |
| 7 | Tpg35-2-v | 6 | 1.2 | 720 | 3 | 65 | 50 | Transportasi sludge |
| 8 | Tpg40-2-v | 9 | 1.2 | 720 | 4 | 80 | 65 | Transportasi sludge |
| 9 | Tpg50-2-v | 15 | 1.2 | 720 | 7.5 | 100 | 80 | Transportasi sludge |
| 10 | TPG60-2-V | 25 | 1.2 | 720 | 11 | 125 | 100 | Transportasi sludge |
| 11 | TPG70-2-V | 40 | 1.2 | 720 | 18.5 | 150 | 125 | Transportasi sludge |
| Ora. | Model pompa | Aliran m³ / h | Tekanan MPA | Rpm kacepetan dirating | Kw motor kw | Diameter diameter mm | Outlet kaliber mm | Fungsi |
| 1 | TPG10-2-V | 0.1 | 1.2 | 960 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 2 | Tpg13-2-v | 0.4 | 1.2 | 960 | 1.1 | 25 | 25 | Pengangkutan Pam |
| 3 | Tpg15-2-v | 0.6 | 1.2 | 960 | 1.1 | 25 | 25 | Pengangkutan Pam |
| 4 | TPG20-2-V | 0.8 | 1.2 | 960 | 1.5 | 25 | 25 | Pengangkutan Pam |
| 5 | Tpg25-2-v | 2 | 1.2 | 960 | 2.2 | 32 | 25 | Transportasi sludge |
| 6 | TPG30-2-V | 5 | 1.2 | 960 | 3 | 50 | 40 | Pengangkutan Sude |
| 7 | Tpg35-2-v | 8 | 1.2 | 960 | 4 | 65 | 50 | Transportasi sludge |
| 8 | Tpg40-2-v | 12 | 1.2 | 960 | 5.5 | 80 | 65 | Transportasi sludge |
| 9 | Tpg50-2-v | 20 | 1.2 | 960 | 7.5 | 100 | 80 | Transportasi sludge |
| 10 | TPG60-2-V | 30 | 1.2 | 960 | 15 | 125 | 100 | Transportasi sludge |
Pilihan pompa TPG-Type kanthi 8-Pole Motor (Taman Inlet Sludge-Tahap Secoro Tinggi-Gambar
| Ora | Model pompa | Aliran m³ / h | Tekanan MPA | Rpm kacepetan dirating | Kw motor kw | Diameter diameter mm | Outlet kaliber mm | Fungsi |
| 1 | TPG10-2-V | 0.08 | 1.2 | 720 | 0.55 | 25 | 25 | Pengangkutan Pam |
| 2 | Tpg13-2-v | 0.3 | 1.2 | 720 | 0.75 | 25 | 25 | Pengangkutan Pam |
| 3 | Tpg15-2-v | 0.45 | 1.2 | 720 | 1.1 | 25 | 25 | Pengangkutan Pam |
| 4 | TPG20-2-V | 0.6 | 1.2 | 720 | 1.1 | 25 | 25 | Transportasi sludge |
| 5 | Tpg25-2-v | 1.5 | 1.2 | 720 | 1.5 | 32 | 25 | Transportasi sludge |
| 6 | TPG30-2-V | 4 | 1.2 | 720 | 2.2 | 50 | 40 | Transportasi sludge |
| 7 | Tpg35-2-v | 6 | 1.2 | 720 | 3 | 65 | 50 | Transportasi sludge |
| 8 | Tpg40-2-v | 9 | 1.2 | 720 | 4 | 80 | 65 | Transportasi sludge |
| 9 | Tpg50-2-v | 15 | 1.2 | 720 | 7.5 | 100 | 80 | Transportasi sludge |
| 10 | TPG60-2-V | 25 | 1.2 | 720 | 11 | 125 | 100 | Transportasi sludge |
| 11 | TPG70-2-V | 40 | 1.2 | 720 | 18.5 | 150 | 125 | Transportasi sludge |
